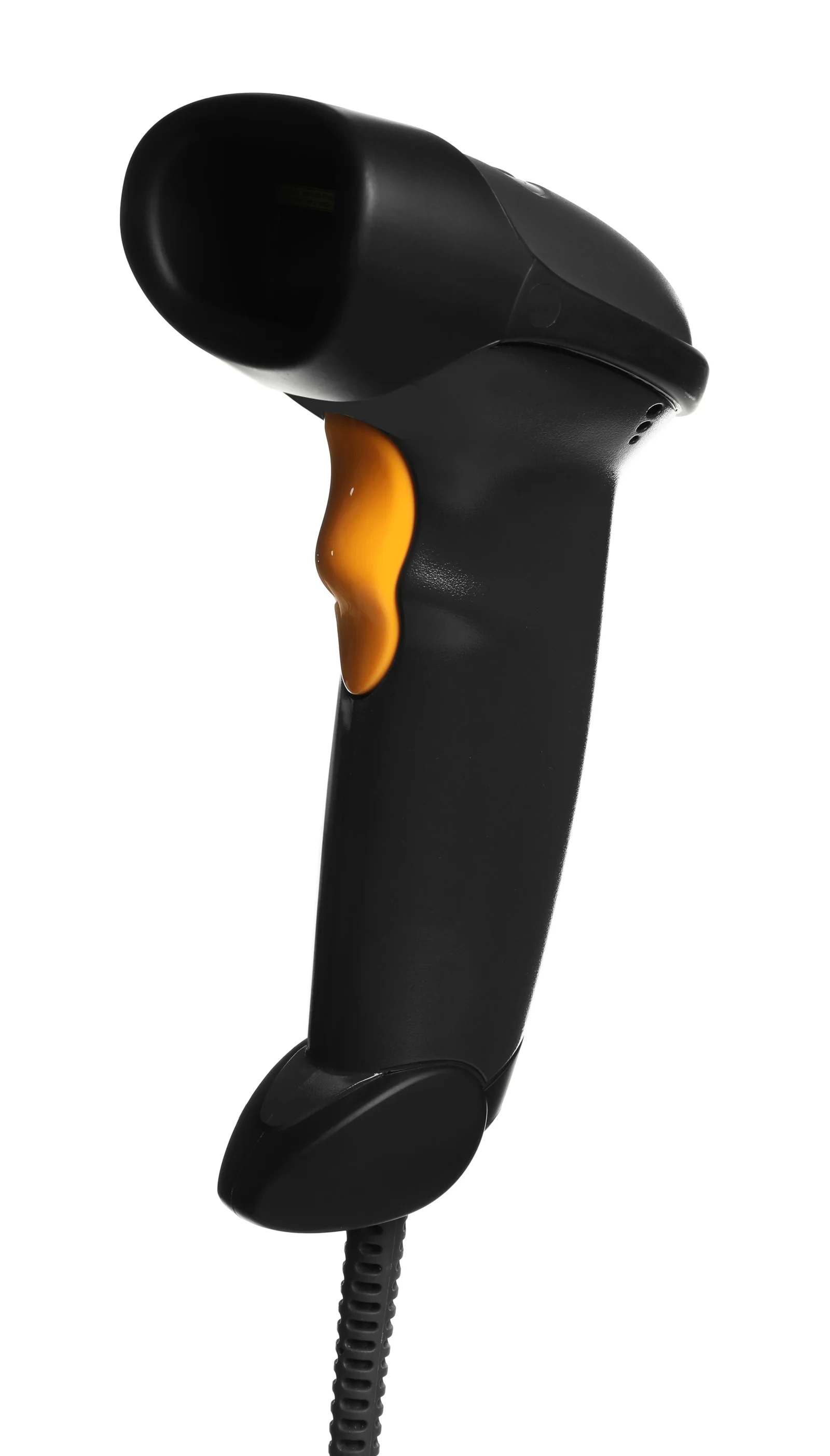

This custom barcode scanner enclosure is designed for handheld data capture devices that need a protected scan head, a responsive trigger area, and a grip shape that supports repeated use during retail, warehouse, or production work. The housing must hold the internal scan engine, PCB, trigger switch, cable connection, and optical window while keeping the front scanning direction clear.
The upper body can be planned around the scan window, lens recess, internal module support, and front impact area. The handle section can be shaped around the trigger opening, grip texture, screw bosses, internal ribs, and cable exit so the scanner remains stable when operators pick items, scan labels, or move between workstations.
For a custom scanner enclosure project, the same design direction can be adjusted through head shape, handle angle, trigger travel, optical-window size, cable strain relief, rear cover, surface texture, button color, and internal mounting details. In retail, warehouse, logistics, or factory environments, the housing may also need to account for repeated handling, drops, dust, label debris, cleaning routines, and cable bending without claiming a specific protection rating.
Application Fit
This type of enclosure is used for handheld barcode scanners, inventory scanners, point-of-sale scanning devices, warehouse data capture tools, logistics label readers, and production-line tracking terminals. It is especially useful when the product needs a clear scan window, a comfortable trigger position, a reinforced handle, and cable routing that can withstand frequent movement.
Customization Points
- Material: molded plastic housing, soft-touch grip area, reinforced front shell, or mixed body construction depending on durability needs.
- Scan Head: custom optical window, lens recess, front bezel, internal scan engine support, and impact-resistant nose geometry.
- Trigger Area: trigger opening, button travel, switch support, color insert, and surrounding wall reinforcement.
- Handle Structure: grip contour, surface texture, screw bosses, internal ribs, and space for wiring or PCB support.
- Cable Exit: strain relief, molded cable boot, connector clearance, bend protection, and lower-handle opening.
- Environment Details: dust protection, cleaning tolerance, drop-resistance planning, label debris control, and service access.
