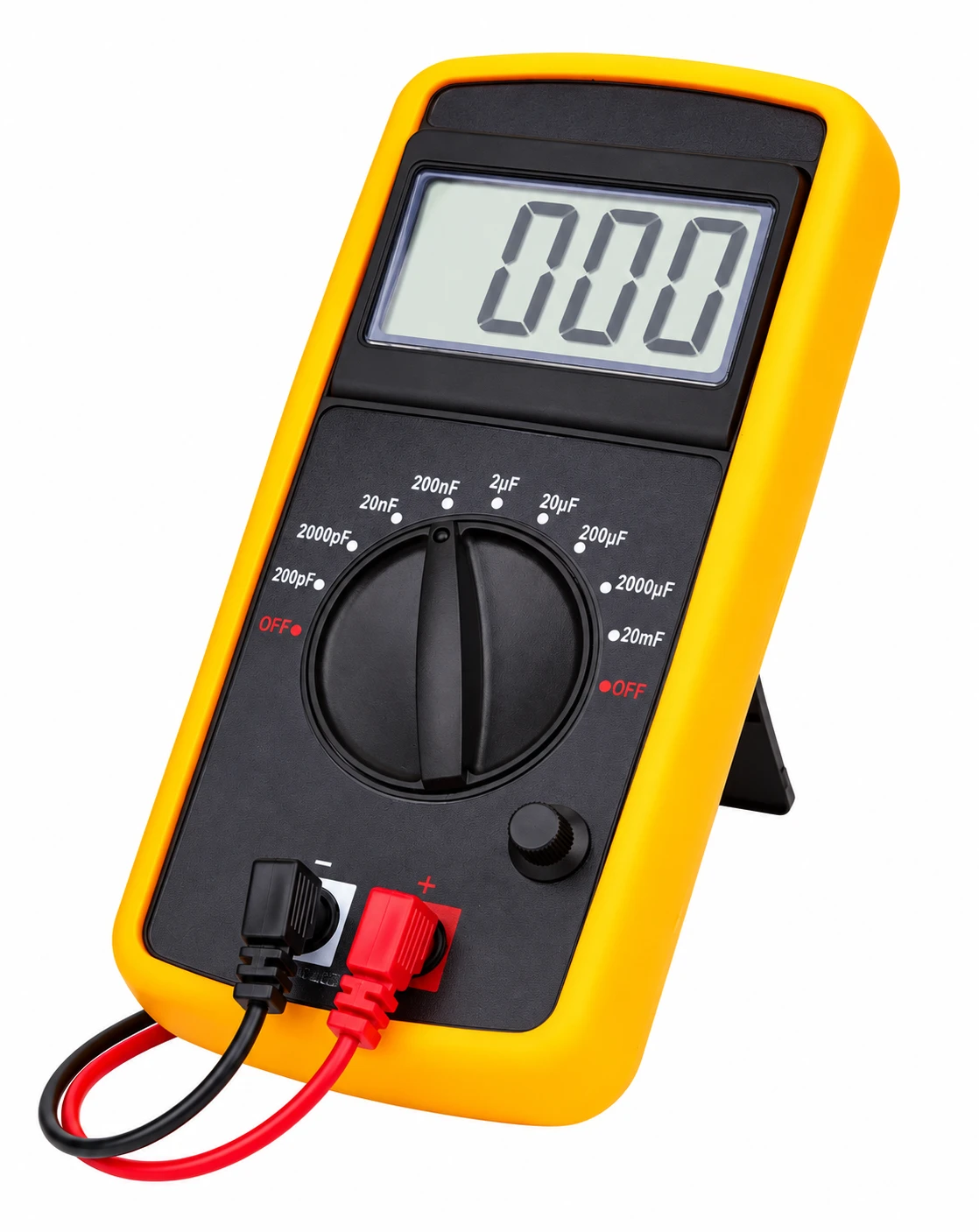

This custom digital multimeter enclosure is designed for handheld test instruments that need a protected measurement circuit, a readable display area, and reliable access to the front controls. The housing must support the LCD window, rotary selector, probe sockets, internal PCB, battery area, and rear support features without making the instrument difficult to hold or operate.
The front panel can be arranged around the display opening, dial clearance, printed measurement symbols, and separated input sockets for test leads. Around the edges, the enclosure can use molded plastic geometry, grip texture, screw bosses, internal ribs, and reinforced socket areas to improve handling and assembly strength.
For a custom instrument enclosure project, the same design direction can be adjusted through housing color, panel layout, display size, knob position, socket spacing, battery-door access, rear stand design, and front-label printing. These details help the meter remain usable during electrical testing while keeping the internal circuit board and contact hardware protected inside the body.
Application Fit
This type of enclosure is used for digital multimeters, capacitance meters, handheld electrical testers, maintenance tools, educational measurement devices, and compact bench instruments. It is especially useful when the device needs visible controls, clearly separated probe inputs, hand-friendly edges, and a body structure that can support repeated handling.
Customization Points
- Material: molded plastic housing, protective outer shell, or mixed front-and-back body construction.
- Display Area: custom LCD window size, lens recess, bezel shape, and screen protection.
- Control Layout: rotary selector clearance, button openings, printed symbols, and front-panel graphics.
- Probe Sockets: separated openings for red and black test leads with reinforced surrounding structure.
- Internal Layout: PCB support, battery compartment, contact hardware, ribs, screw bosses, and wire routing.
- Rear Features: fold-out stand, battery cover, screw access, hanging slot, or label area when required.
